China Hot selling cat6 utp network cable 4 pair utp cat 6 cable
Hot sale products
Hot sale in
FOB Reference Price:Get Latest Price
$0.10 - $0.30
/ Meter
| 500 Meter/Meters (Min. Order)
- Samples:
- Shipping:
- Support Express · Sea freight · Land freight · Air freight
- Customization:
-
Customized logo (Min. Order: 5000 Meters)Customized packaging (Min. Order: 5000 Meters)
More
Graphic customization (Min. Order: 5000 Meters) Less
Product Details
Company Profile
Overview
Quick Details
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
JZD
- Number of Conductors:
-
4
- Type:
-
Cat 5
- U/U0:
-
300/500V
- Color:
-
As your request
- Standard:
-
ul3135
- Temperature:
-
-60C/+200C
- Application:
-
Lighting/electric appliance/instrument
- Conductor:
-
Copper
- Jacket:
-
PVC
- Certification:
-
CE/ROHS/ISO9001
- Product name:
-
cat6 utp network cable 4 pair utp cat 6 cable
Supply Ability
- Supply Ability:
- 10000 Meter/Meters per Month
Packaging & Delivery
- Packaging Details
- Inner packing:Wooden reel,Plastic reel,Paper reel
Ourter pakcing:Carton box,Pull outbox,Palleta available.
- Port
- shenzhen
Online Customization


Advantage
1. With 20 years of production experience, we have mastered the most advanced and mature technology in this field.
2.With stable production ability, we product 500,000 meters per day.
3. With a good reputation and numerous customers both at home
and overseas.
and overseas.
4. With good quality with factory price.
Product Name | Cat 6 Network Cable |
Type | Cat 6/Cat 6a |
Conductor Material | OFC/BC/CU/CCA/CCS |

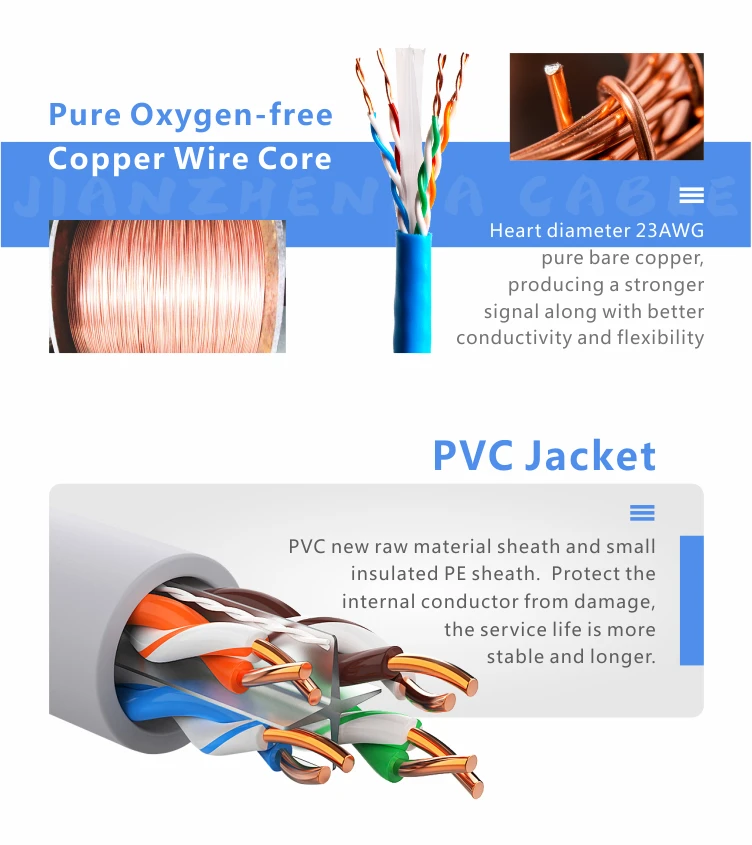

Conductor Size | 23AWG |
NO. of Conductor | 4P/8C |
Insulation Material | PE , HDPE |
Jacket | PVC/ ROHS PVC /LSZH PVC |
Shield | Unshield/ Shield |
Indoor /Outdoor | PVC(Indoor) /PE(Outdoor)v |
Insulation Thickness | 0.2 MM |
Jacket Thickness | 0.92-0.95 MM |
Operating Temperature | -20~70 ℃ |
Max.Capacitance Unbalance(pF/100m) | ≤330pF /100M(Per TIA/EIA-5688.2) |
≤60pF/100(Per IEC 61156) | |
Nominal Velocity of Propagation | 72% |
Max.Delay Skew(ns/100m) | ≤45ns/100m |
Max.Conductor DC Resistance 20Deg.C | Max.Conductor DC Resistance 20Deg.C |
Max.DC Resistance unbalance 20 Deg.C | Max.DC Resistance unbalance 20 Deg.C |
≤2% (per IEC 61156) | |
Characteristic lmpedance(O) 4~100MHz | 100±15 |
Operating Temp.Range | -20~70 ℃ |
Max.Recommended Pulling Tension | 110N |
Min.Bend Radius(lnstall) | 8XO.D. |
Flame Test | CM |






Recommend Products



FAQ
1. Are you a manufacturer or trading company?We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
